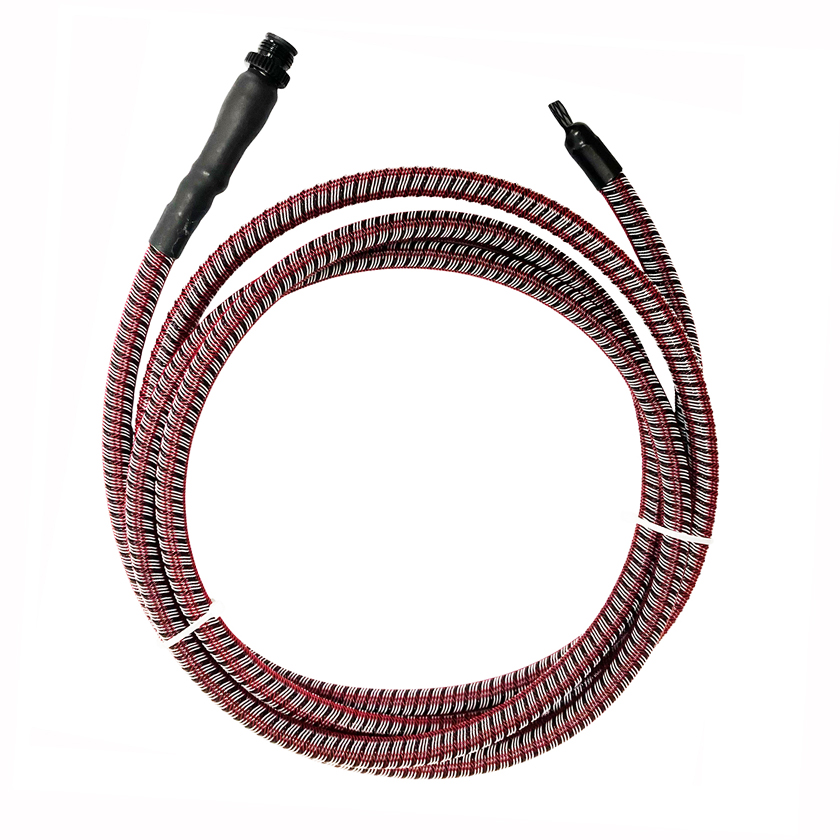

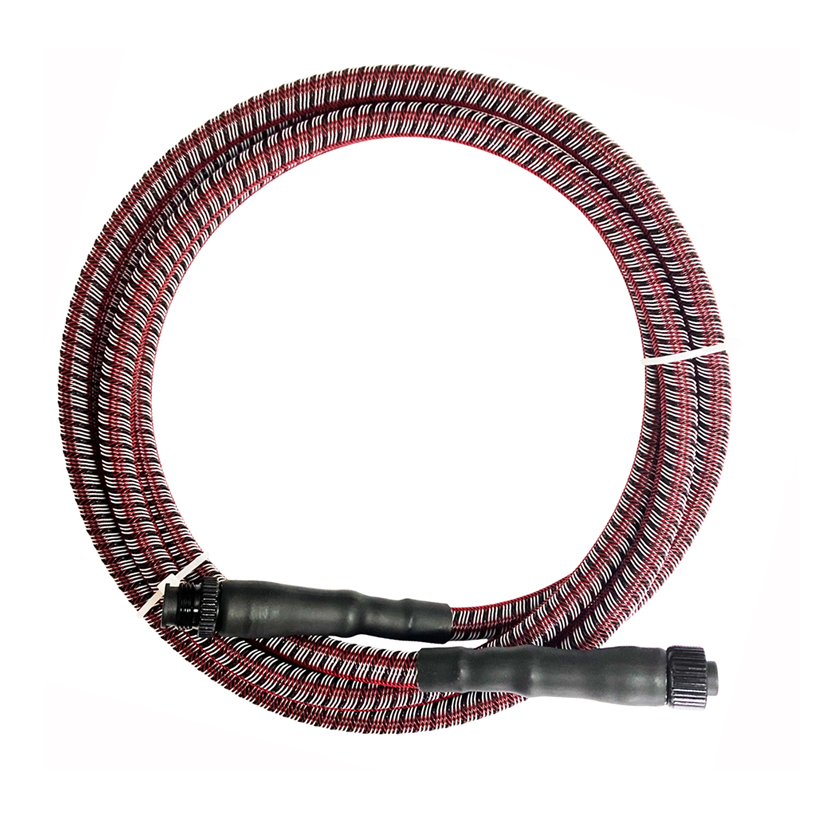

Fuel Oil Sensing Cable

Model:P-LFP6000

P-LFP6000 Fuel Oil Sensing Cable detects the presence of liquid hydrocarbon fuels at any point along its length,yet does not react to the presence of water.
Installed with a Prosino alarm and locating module, the cable senses the liquid,triggers an alarm,and pinpoints the location of the leak within one meter.

Main features:

Fast typicalresponse time to hydrocarbon fluid
Outdoor application friendly-Insensible to water
Re-usable
Pre-connected

Get a Quote

Specifications

Product Name :	Fuel Oil Sensing Cable
Model :	P-LFP6000
Cable diameter	8 mm (0.32 in) nominal
Cable diameter with connector	13 mm (0.52 in) nominal
Cable weight	7.3 kg/100 m nominal (4.81 lb/100 ft nominal)
Fluoropolymer braid	Color—red, white and black
Operating temperature range	–20°C to 60°C (–4°F to 140°F)
Pull force limit	Not to exceed 22.7 kg (50 lb)
Bend radius	50 mm (2 in) minimum
Pressure	Loads greater than 9 kg (20 lb) per linear inch at 20°C (68°F) may immediately trigger an alarm
Non Resettable	Must be replaced after exposure to hydrocarbon liquids
Cable functions normally	Sulfuric acid (10%)
after exposure in	Hydrochloric acid (10%)
accordance with ASTM D	Nitric acid (10%)
543 at 23°C (73°F) for	Sodium hydroxide (10%)
Sensing cable	Less than 10 μA leakage when immersed in salt water for 90 days
Connector system	Less than 10 μA leakage when immersed in water at 10 psig for 24 hours
Gasoline	3 minutes
#1 diesel fuel	30 minutes
#2 diesel fuel	60 minutes
JP5 jet fuel	30 minutes
JP8 jet fuel	20 minutes
Jet-A jet fuel	20 minutes
Xylene	10 minutes
Notes:	Response Time Test Method: “Test Procedures for Third Party Evaluation of Leak Detection Methods; Cable Sensor Liquid Contact Leak Detection Systems.” • Response times are affected by operating temperature. Consult factory for specific response times at other temperatures and in other liquids.

Resources

Product Overview

This Fuel Oil Sensing Cable provides distributed leak detection and location for a wide range of applications. The cable is available in a variety of lengths to provide as much coverage as needed.

Cable can be in bulk form, cut to length in the field and joined using connector kits, or it can be obtained in standard lengths with connectors attached in the factory
These modular sensing cables may be connected in series to provide distributed monitoring for trenches, subfloors and double-containment piping
Or used individually for double-containment tanks, sumps, and small areas
P-LFP6000 zone sensing cable—which comes with a factory-installed,
Heat-shrink end termination—is also available for small area coverage.
