Located Water Leak Detection Cable

Model:P-LFP1000

Distributed sensing
P-LFP1000 sensing cables provide distributed leak detection and location over a wide range of areas.
The cable is available in a variety of lengths to provide as much coverage as needed

Main features:

Lengths Customized to fit different applications
Indicates the actual leak position along it’s length
Compatible with most alarm sensors for real-time notifications
High sensitivity,Fast drying time,Fire and flame resistant

Get a Quote

Specifications

Model:	P-LFP1000
Cable diameter	0.24 in(6.0mm)nominal
Continuity and signal wires	2*26 AWG with insulation of fluoropolymer
Sensing wires	2*30 AWG with jacket of conductive fluoropolymer
Carrier	Fluoropolymer
Cable weight(50 ft/15m length)	2.3 lb (1kg)
Cable color	High-visibility yellow
Breaking strength	Cable only:160 Ib(72KG) .Including connectors:70 Ib(32kg)
Cut-through force	>50Ib with 0.005(>22kg with with 0.13mm) in blade;crosshead speed 0.2in/min
Abrasion resistance	>65 cycles per UL719
Maximum continuous operating temperature	70degree
Leak size to alarm(tap water)	2 in(50mm)maximum at any piont along sensing cable ,up to 5000 ft maximum system length
Drying time	Cable dries and resets within 15 seconds after removal from standing water
Standard cleaning method	Wipe with clean damp cloth
Monitoring System Accessories
Modle No
P-LFP1	Located controller sensor
P-LFP1000	Located water leak detection cable
P-LFW86	End terminal
P-LFP68	Modular lead wire
FP01	Plastic cable clip

Resources

Product Overview

Water damage can affect anyone. Our smart home water leak sensors deliver notifications Real-time, alerting them before damage gets costly. This Cable Sensor for Water Leak and Freeze Detectors provides large area coverage for utility rooms, basements and sinks.

P-LFP1000 sensing cable is supplied with factory-installed plastic connectors that plug together.
the cable is designed for a range of applications,including data center subfloors,telecommunication rooms HVAC equipment locations,pipes,electrical vaults,
Storage areas,tanks,and roofs.The cable is small,lightweithted,and flexible,allowing easy installation.The smooth design allows for quick drying.

The conductive-polymer technology and fluoropolymer construction make P-LFP1000 sensing cable mechanically strong and resistant to corrosion and abrasion.

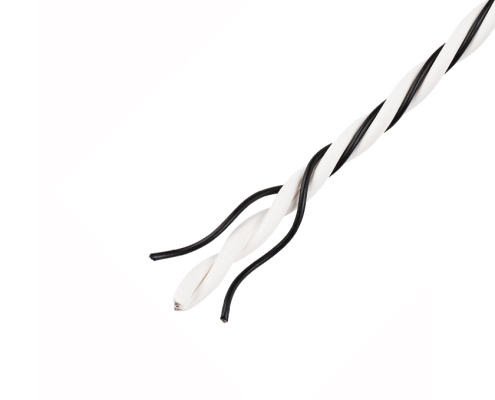

this cable is constructed of two sensing wires,an alarm signal wire,and a continuity wire embedded in a fluoropolymer carrer rod.
the alarm module constantly monitors the sensing cable for continuity.The rugged cable construction exposes no metal,and enables the cable to be reused even in corrosive environments.
