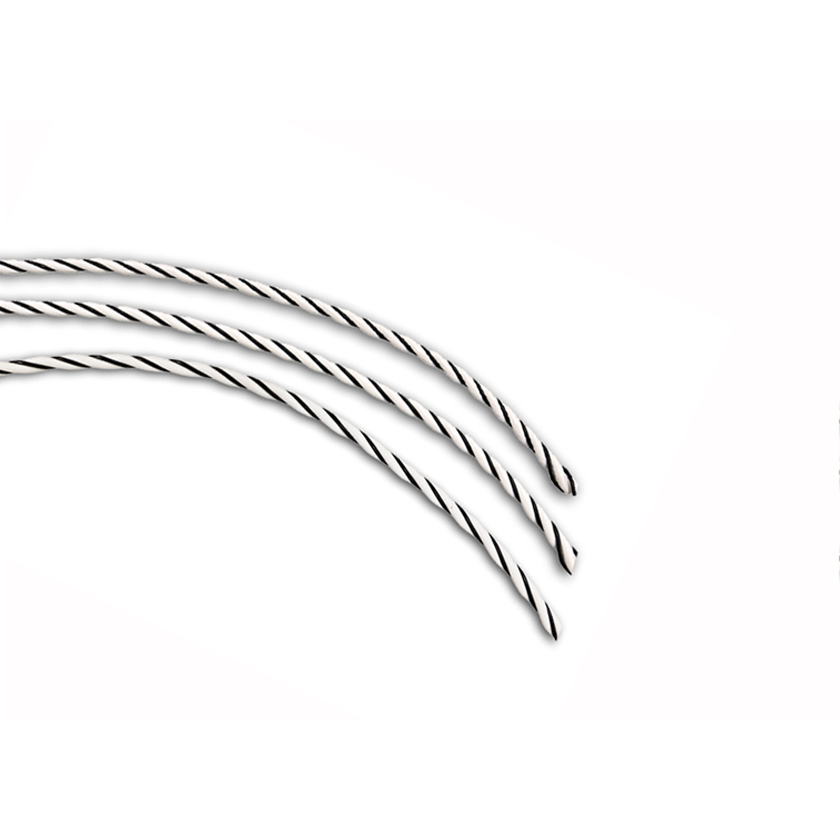

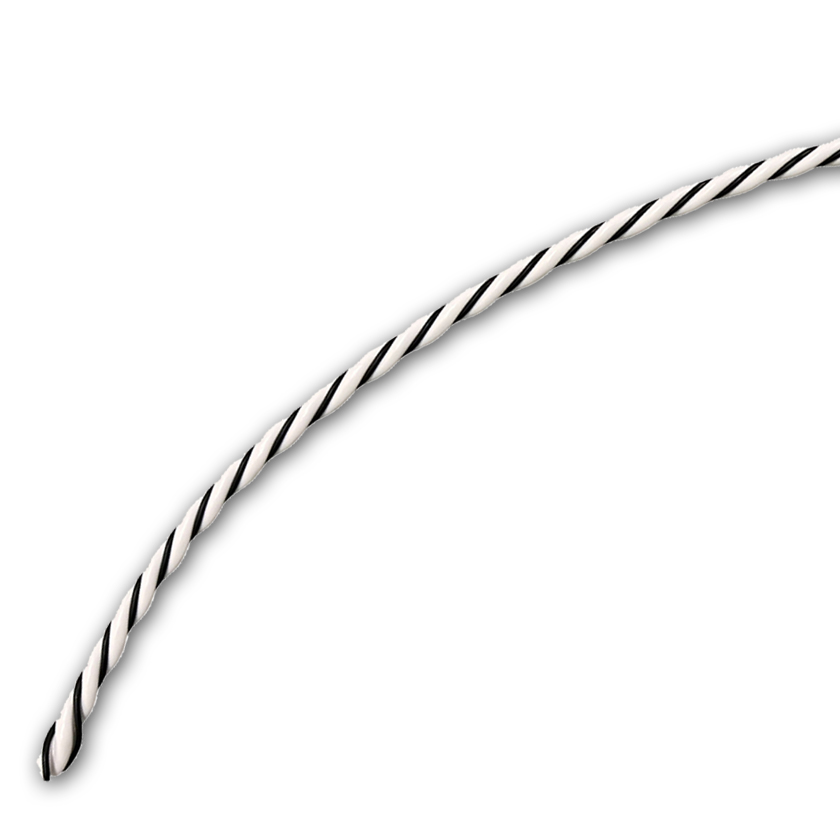

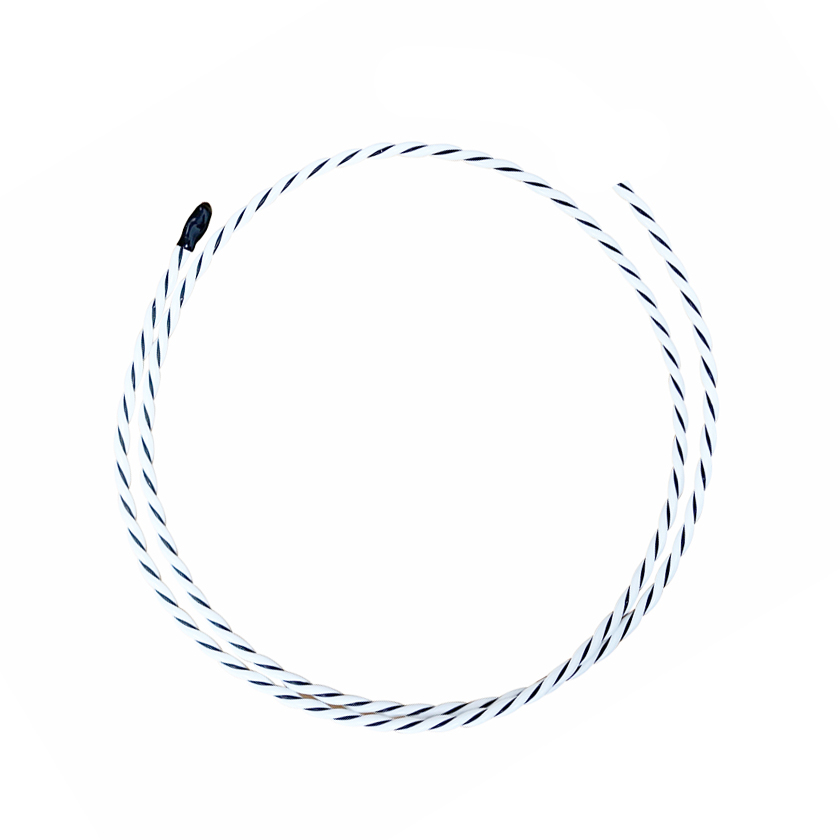

Liquid Cooling Sensor Cable

Model:P-LFP1C-1

This Liquid Cooling Sensor Cables is designed to detect the water leakage along it’s length,fast and precise leak detection,for various types of water liquids,Real-time monitoring,preventing false alarm, high reliability . able to detects the presence of water leaks and other conductive fluid,compact sensor designed to detect leaks of conductive coolant liquids in liquid-cooled unit,data centers to ensure minimal water damage.

Liquid Cooling Sensor Cable Main features:

Lengths customized to fit different applications
Compatible with most alarm systems for real-time notifications
High resistance to corrosion, abrasion, and chemicals
High sensitivity,Fast drying time,Fire and flame resistant

Get a Quote

Specifications

Performance Data

Product Name:	Liquid Cooling Sensor Cable
Product Model:	P-LFP1C-1
Cable diameter	0.16in (4.0mm) ±10% nominal
Sensing wires	2*24 AWG with jacket of conductive fluoropolymer
Carrier	Fluoropolymer
Cable weight(1m length)	0.03kgs
Cable color	High-visibility White
Leak size to alarm(tap water)	2 in(50mm)maximum at any pint along sensing cable ,up to 5000 ft maximum system length
Drying time	Cable dries and resets within 15 seconds after removal from standing water
Standard cleaning method	Wipe with clean damp cloth
Accessories
Item No	Description
P-FP1A	Non-located water leak detector
P-LFP1C-1	Liquid Cooling Sensor Cable
P-LFP68	Lead wire
F-P01	Cable Clip

Product Overview

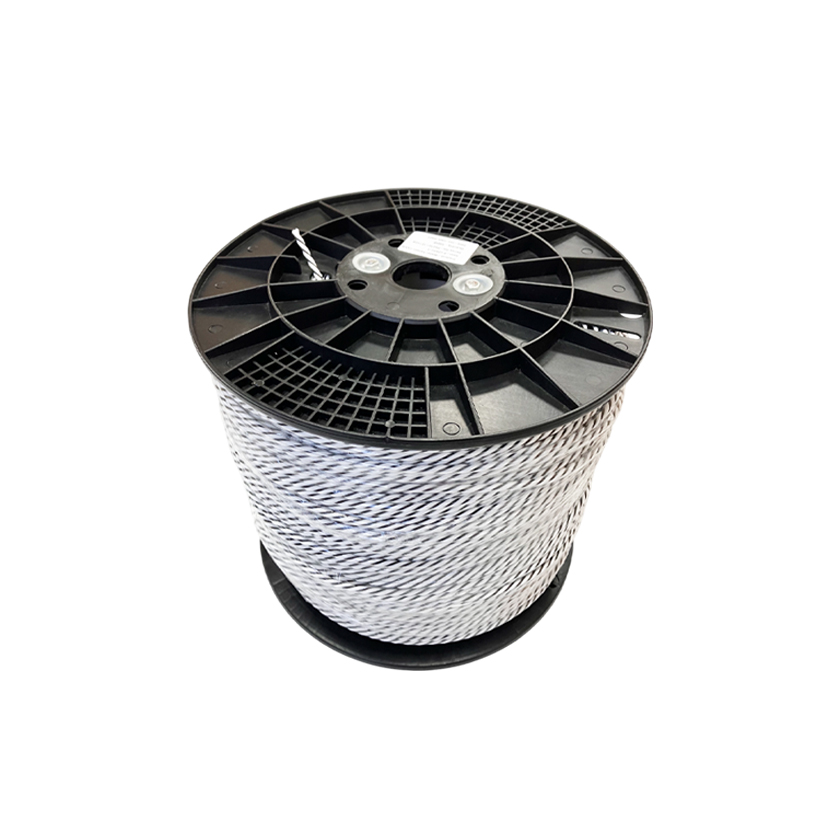

This Liquid Cooling Sensor Cables is with flexibility design,supplied with factory-installed plastic connectors that plug together,the cable is designed of a range of applications,including data center sub floors,telecommunication rooms HVAC equipment locations,pipes,electrical vaults,storage areas,tanks,and roofs.The cable is small,lightweight,and flexible,allowing easy installation,the smooth design allows for quick drying.

Advanced technology,the conductive-polymer technology and fluoropolymer construction make this cable mechanically strong and resistant to corrosion and abrasion

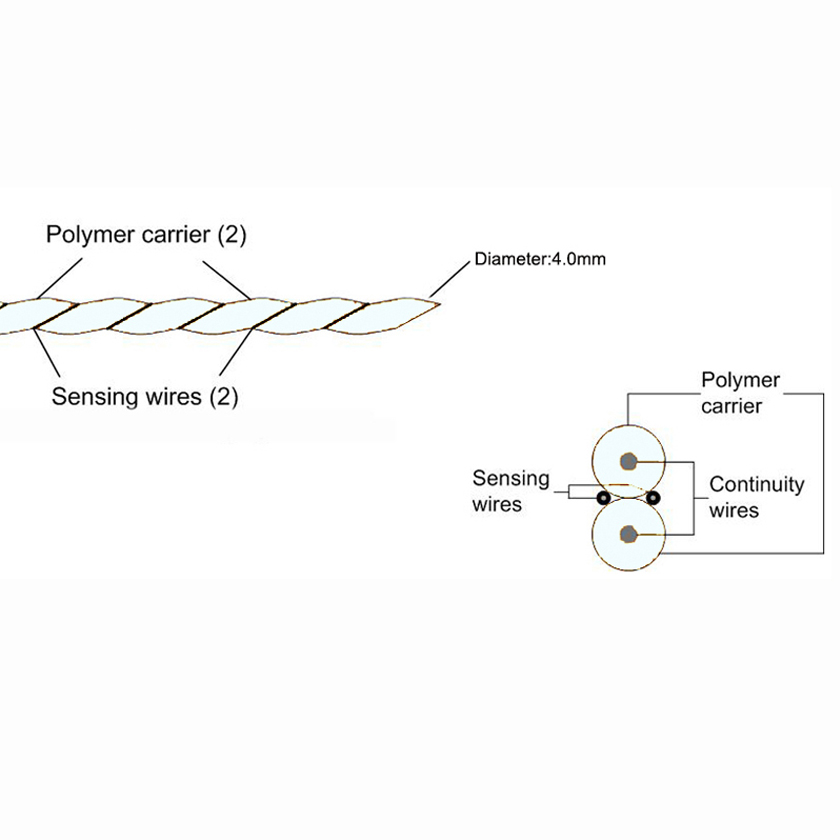

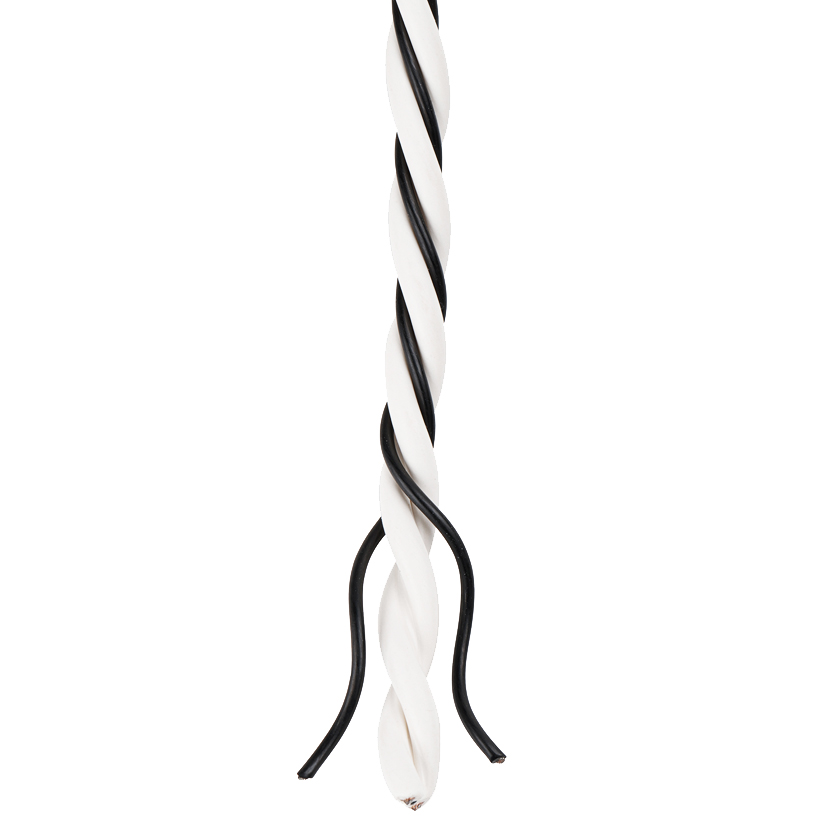

Cable is constructed of two sensing wires, embedded in a fluoropolymer carrier rod
With alarm module constantly monitors the sensing cable for continuity
The rugged cable construction exposes no metal,and enables the cable to be reused even in corrosive environments
